P. 68

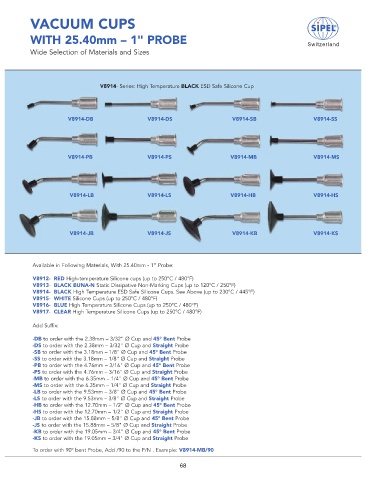

VACUUM CUPS

           WITH 25.40mm – 1" PROBE                                                                        Switzerland

           Wide Selection of Materials and Sizes






                                   V8914- Series: High Temperature BLACK ESD Safe Silicone Cup





                        V8914-DB                   V8914-DS                     V8914-SB                    V8914-SS






                        V8914-PB                   V8914-PS                    V8914-MB                     V8914-MS






                         V8914-LB                  V8914-LS                    V8914-HB                     V8914-HS






                         V8914-JB                  V8914-JS                     V8914-KB                    V8914-KS





            Available in Following Materials, With 25.40mm - 1" Probe:

            V8912- RED High-temperature Silicone cups (up to 250°C / 480°F)
            V8913- BLACK BUNA-N Static Dissipative Non-Marking Cups (up to 120°C / 250°F)
            V8914- BLACK High Temperature ESD Safe Silicone Cups. See Above (up to 230°C / 445°F)
            V8915- WHITE Silicone Cups (up to 250°C / 480°F)
            V8916- BLUE High Temperature Silicone Cups (up to 250°C / 480°F)
            V8917- CLEAR High Temperature Silicone Cups (up to 250°C / 480°F)

            Add Suffix:

            -DB to order with the 2.38mm – 3/32" Ø Cup and 45° Bent Probe
            -DS to order with the 2.38mm – 3/32" Ø Cup and Straight Probe
            -SB to order with the 3.18mm – 1/8" Ø Cup and 45° Bent Probe
            -SS to order with the 3.18mm – 1/8" Ø Cup and Straight Probe
            -PB to order with the 4.76mm – 3/16" Ø Cup and 45° Bent Probe
            -PS to order with the 4.76mm – 3/16" Ø Cup and Straight Probe
            -MB to order with the 6.35mm – 1/4" Ø Cup and 45° Bent Probe
            -MS to order with the 6.35mm – 1/4" Ø Cup and Straight Probe
            -LB to order with the 9.53mm – 3/8" Ø Cup and 45° Bent Probe
            -LS to order with the 9.53mm – 3/8" Ø Cup and Straight Probe
            -HB to order with the 12.70mm – 1/2" Ø Cup and 45° Bent Probe
            -HS to order with the 12.70mm – 1/2" Ø Cup and Straight Probe
            -JB to order with the 15.88mm – 5/8" Ø Cup and 45° Bent Probe
            -JS to order with the 15.88mm – 5/8" Ø Cup and Straight Probe
            -KB to order with the 19.05mm – 3/4” Ø Cup and 45° Bent Probe
            -KS to order with the 19.05mm – 3/4" Ø Cup and Straight Probe
            To order with 90° bent Probe, Add /90 to the P/N . Example: V8914-MB/90

                                                              68
