Page 71 - SIPEL csipeszek

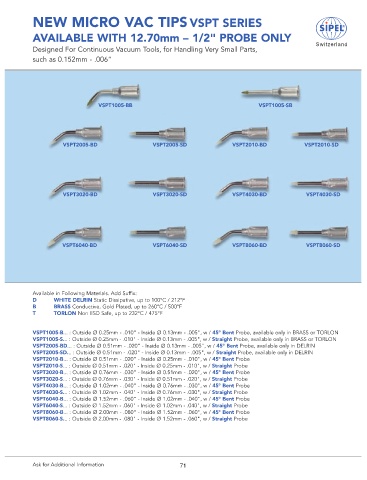

NEW MICRO VAC TIPS VSPT SERIES

AVAILABLE WITH 12.70mm – 1/2" PROBE ONLY
Switzerland
Designed For Continuous Vacuum Tools, for Handling Very Small Parts,
such as 0.152mm - .006”

VSPT1005-BB VSPT1005-SB

VSPT2005-BD VSPT2005-SD VSPT2010-BD VSPT2010-SD

VSPT3020-BD VSPT3020-SD VSPT4030-BD VSPT4030-SD

VSPT6040-BD VSPT6040-SD VSPT8060-BD VSPT8060-SD

Available in Following Materials. Add Suffix:
D WHITE DELRIN Static Dissipative, up to 100°C / 212°F
B BRASS Conductive, Gold Plated, up to 260°C / 500°F
T TORLON Non ESD Safe, up to 232°C / 475°F

VSPT1005-B... : Outside Ø 0.25mm - .010" - Inside Ø 0.13mm - .005", w / 45° Bent Probe, available only in BRASS or TORLON
VSPT1005-S... : Outside Ø 0.25mm - .010" - Inside Ø 0.13mm - .005", w / Straight Probe, available only in BRASS or TORLON
VSPT2005-BD... : Outside Ø 0.51mm - .020" - Inside Ø 0.13mm - .005", w / 45° Bent Probe, available only in DELRIN
VSPT2005-SD... : Outside Ø 0.51mm - .020" - Inside Ø 0.13mm - .005", w / Straight Probe, available only in DELRIN
VSPT2010-B... : Outside Ø 0.51mm - .020" - Inside Ø 0.25mm - .010", w / 45° Bent Probe
VSPT2010-S... : Outside Ø 0.51mm - .020" - Inside Ø 0.25mm - .010", w / Straight Probe
VSPT3020-B... : Outside Ø 0.76mm - .030" - Inside Ø 0.51mm - .020", w / 45° Bent Probe
VSPT3020-S... : Outside Ø 0.76mm - .030" - Inside Ø 0.51mm - .020", w / Straight Probe
VSPT4030-B... : Outside Ø 1.02mm - .040" - Inside Ø 0.76mm - .030", w / 45° Bent Probe
VSPT4030-S... : Outside Ø 1.02mm - .040" - Inside Ø 0.76mm - .030", w / Straight Probe
VSPT6040-B... : Outside Ø 1.52mm - .060" - Inside Ø 1.02mm - .040", w / 45° Bent Probe
VSPT6040-S... : Outside Ø 1.52mm - .060" - Inside Ø 1.02mm - .040", w / Straight Probe
VSPT8060-B... : Outside Ø 2.00mm - .080" - Inside Ø 1.52mm - .060", w / 45° Bent Probe
VSPT8060-S... : Outside Ø 2.00mm - .080" - Inside Ø 1.52mm - .060", w / Straight Probe

Ask for Additional Information 71
