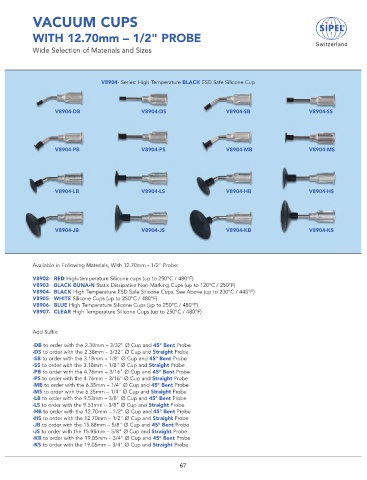

VACUUM CUPS

WITH 12.70mm – 1/2" PROBE
Switzerland
Wide Selection of Materials and Sizes

V8904- Series: High Temperature BLACK ESD Safe Silicone Cup

V8904-DB V8904-DS V8904-SB V8904-SS

V8904-PB V8904-PS V8904-MB V8904-MS

V8904-LB V8904-LS V8904-HB V8904-HS

V8904-JB V8904-JS V8904-KB V8904-KS

Available in Following Materials, With 12.70mm - 1/2" Probe:

V8902- RED High-temperature Silicone cups (up to 250°C / 480°F)
V8903- BLACK BUNA-N Static Dissipative Non-Marking Cups (up to 120°C / 250°F)
V8904- BLACK High Temperature ESD Safe Silicone Cups. See Above (up to 230°C / 445°F)
V8905- WHITE Silicone Cups (up to 250°C / 480°F)
V8906- BLUE High Temperature Silicone Cups (up to 250°C / 480°F)
V8907- CLEAR High Temperature Silicone Cups (up to 250°C / 480°F)

Add Suffix:

-DB to order with the 2.38mm – 3/32" Ø Cup and 45° Bent Probe
-DS to order with the 2.38mm – 3/32" Ø Cup and Straight Probe
-SB to order with the 3.18mm – 1/8" Ø Cup and 45° Bent Probe
-SS to order with the 3.18mm – 1/8" Ø Cup and Straight Probe
-PB to order with the 4.76mm – 3/16" Ø Cup and 45° Bent Probe
-PS to order with the 4.76mm – 3/16" Ø Cup and Straight Probe
-MB to order with the 6.35mm – 1/4" Ø Cup and 45° Bent Probe
-MS to order with the 6.35mm – 1/4" Ø Cup and Straight Probe
-LB to order with the 9.53mm – 3/8" Ø Cup and 45° Bent Probe
-LS to order with the 9.53mm – 3/8" Ø Cup and Straight Probe
-HB to order with the 12.70mm – 1/2" Ø Cup and 45° Bent Probe
-HS to order with the 12.70mm – 1/2" Ø Cup and Straight Probe
-JB to order with the 15.88mm – 5/8" Ø Cup and 45° Bent Probe
-JS to order with the 15.88mm – 5/8" Ø Cup and Straight Probe
-KB to order with the 19.05mm – 3/4” Ø Cup and 45° Bent Probe
-KS to order with the 19.05mm – 3/4" Ø Cup and Straight Probe

67
