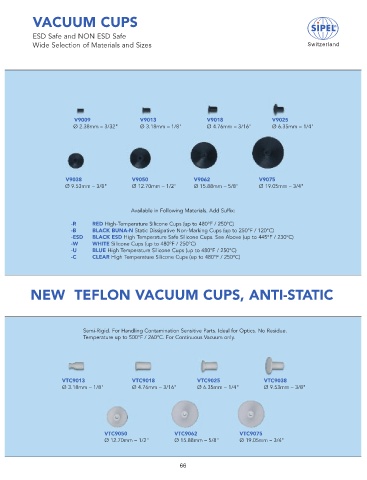

P. 66
VACUUM CUPS
ESD Safe and NON ESD Safe
Wide Selection of Materials and Sizes Switzerland
V9009 V9013 V9018 V9025
Ø 2.38mm – 3/32" Ø 3.18mm – 1/8" Ø 4.76mm – 3/16" Ø 6.35mm – 1/4"
V9038 V9050 V9062 V9075
Ø 9.53mm – 3/8" Ø 12.70mm – 1/2" Ø 15.88mm – 5/8" Ø 19.05mm – 3/4"
Available in Following Materials. Add Suffix:
-R RED High-Temperature Silicone Cups (up to 480°F / 250°C)
-B BLACK BUNA-N Static Dissipative Non-Marking Cups (up to 250°F / 120°C)
-ESD BLACK ESD High Temperature Safe Silicone Cups. See Above (up to 445°F / 230°C)
-W WHITE Silicone Cups (up to 480°F / 250°C)
-U BLUE High Temperature Silicone Cups (up to 480°F / 250°C)
-C CLEAR High Temperature Silicone Cups (up to 480°F / 250°C)
NEW TEFLON VACUUM CUPS, ANTI-STATIC
Semi-Rigid. For Handling Contamination Sensitive Parts. Ideal for Optics. No Residue.
Temperature up to 500°F / 260°C. For Continuous Vacuum only.
VTC9013 VTC9018 VTC9025 VTC9038
Ø 3.18mm – 1/8" Ø 4.76mm – 3/16" Ø 6.35mm – 1/4" Ø 9.53mm – 3/8"
VTC9050 VTC9062 VTC9075
Ø 12.70mm – 1/2" Ø 15.88mm – 5/8" Ø 19.05mm – 3/4"
66
