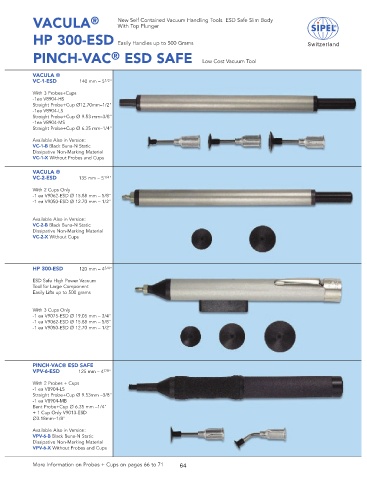

Page 64 - SIPEL csipeszek

VACULA ® New Self Contained Vacuum Handling Tools ESD Safe Slim Body
With Top Plunger

HP 300-ESD Easily Handles up to 500 Grams Switzerland
®
PINCH-VAC ESD SAFE Low Cost Vacuum Tool

VACULA ®
VC-1-ESD 140 mm – 5 1/2 "
With 3 Probes+Cups
-1ea V8904-HS
Straight Probe+Cup Ø12.70mm–1/2"
-1ea V8904-LS
Straight Probe+Cup Ø 9.53 mm–3/8"
-1ea V8904-MS
Straight Probe+Cup Ø 6.35 mm–1/4"
Available Also in Version:
VC-1-B Black Buna-N Static
Dissipative Non-Marking Material
VC-1-X Without Probes and Cups

VACULA ®
VC-2-ESD 135 mm – 5 1/4 "

With 2 Cups Only
-1 ea V9062-ESD Ø 15.88 mm – 5/8"
-1 ea V9050-ESD Ø 12.70 mm – 1/2"

Available Also in Version:
VC-2-B Black Buna-N Static
Dissipative Non-Marking Material
VC-2-X Without Cups

HP 300-ESD 120 mm – 4 3/4 "
ESD Safe High Power Vacuum
Tool for Large Component
Easily Lifts up to 500 grams

With 3 Cups Only
-1 ea V9075-ESD Ø 19.05 mm – 3/4"
-1 ea V9062-ESD Ø 15.88 mm – 5/8"
-1 ea V9050-ESD Ø 12.70 mm – 1/2"

PINCH-VAC® ESD SAFE
VPV-6-ESD 125 mm – 4 7/8 "

With 2 Probes + Cups
-1 ea V8904-LS
Straight Probe+Cup Ø 9.53mm –3/8"
-1 ea V8904-MB
Bent Probe+Cup Ø 6.35 mm –1/4"
+ 1 Cup Only V9013-ESD
Ø3.18mm–1/8"

Available Also in Version:
VPV-6-B Black Buna-N Static
Dissipative Non-Marking Material
VPV-6-X Without Probes and Cups

More Information on Probes + Cups on pages 66 to 71 64
