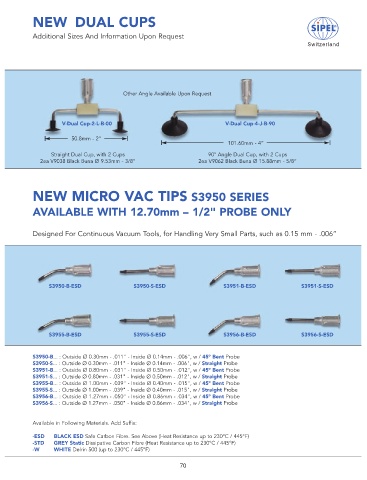

NEW DUAL CUPS

Additional Sizes And Information Upon Request
Switzerland

Other Angle Available Upon Request

V-Dual Cup-2-L-B-00 V-Dual Cup-4-J-B-90

50.8mm - 2”
101.60mm - 4”
Straight Dual Cup, with 2 Cups 90° Angle Dual Cup, with 2 Cups
2ea V9038 Black Buna Ø 9.53mm - 3/8” 2ea V9062 Black Buna Ø 15.88mm - 5/8”

NEW MICRO VAC TIPS S3950 SERIES

AVAILABLE WITH 12.70mm – 1/2" PROBE ONLY

Designed For Continuous Vacuum Tools, for Handling Very Small Parts, such as 0.15 mm - .006”

S3950-B-ESD S3950-S-ESD S3951-B-ESD S3951-S-ESD

S3955-B-ESD S3955-S-ESD S3956-B-ESD S3956-S-ESD

S3950-B... : Outside Ø 0.30mm - .011" - Inside Ø 0.14mm - .006", w / 45° Bent Probe
S3950-S... : Outside Ø 0.30mm - .011" - Inside Ø 0.14mm - .006", w / Straight Probe
S3951-B... : Outside Ø 0.80mm - .031" - Inside Ø 0.50mm - .012", w / 45° Bent Probe
S3951-S... : Outside Ø 0.80mm - .031" - Inside Ø 0.50mm - .012", w / Straight Probe
S3955-B... : Outside Ø 1.00mm - .039" - Inside Ø 0.40mm - .015", w / 45° Bent Probe
S3955-S... : Outside Ø 1.00mm - .039" - Inside Ø 0.40mm - .015", w / Straight Probe
S3956-B... : Outside Ø 1.27mm - .050" - Inside Ø 0.86mm - .034", w / 45° Bent Probe
S3956-S... : Outside Ø 1.27mm - .050" - Inside Ø 0.86mm - .034", w / Straight Probe

Available in Following Materials. Add Suffix:

-ESD BLACK ESD Safe Carbon Fibre. See Above (Heat Resistance up to 230°C / 445°F)
-STD GREY Static Dissipative Carbon Fibre (Heat Resistance up to 230°C / 445°F)
-W WHITE Delrin 500 (up to 230°C / 445°F)

70
