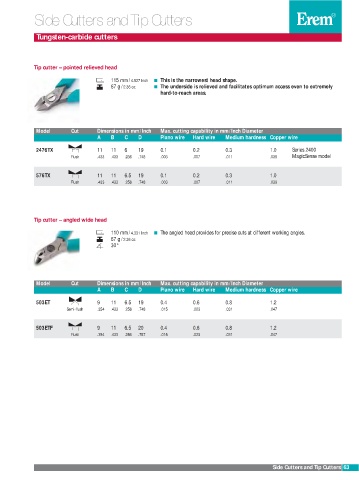

Side Cutters and Tip Cutters

Tungsten-carbide cutters

Tip cutter – pointed relieved head
115 mm/ 4.527 Inch This is the narrowest head shape.
67 g / 2.36 oz. The underside is relieved and facilitates optimum access even to extremely
hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Piano wire Hard wire Medium hardness Copper wire
2476TX 11 11 6 19 0.1 0.2 0.3 1.0 Series 2400
Flush .433 .433 .236 .748 .003 .007 .011 .039 MagicSense model

576TX 11 11 6.5 19 0.1 0.2 0.3 1.0
Flush .433 .433 .256 .748 .003 .007 .011 .039

Tip cutter – angled wide head

110 mm/ 4.331 Inch The angled head provides for precise cuts at different working angles.
67 g / 2.36 oz.
30°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Piano wire Hard wire Medium hardness Copper wire

503ET 9 11 6.5 19 0.4 0.6 0.8 1.2
Semi-flush .354 .433 .256 .748 .015 .023 .031 .047

503ETF 9 11 6.5 20 0.4 0.6 0.8 1.2
Flush .354 .433 .256 .787 .015 .023 .031 .047

Side Cutters and Tip Cutters 63
