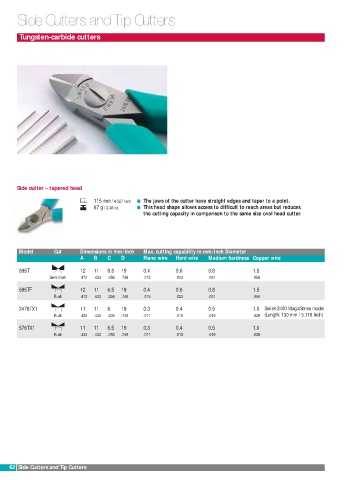

Side Cutters and Tip Cutters

Tungsten-carbide cutters

Side cutter – tapered head

115 mm/ 4.527 Inch The jaws of the cutter have straight edges and taper to a point.
67 g / 2.36 oz. This head shape allows access to difficult to reach areas but reduces
the cutting capacity in comparison to the same size oval head cutter.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Piano wire Hard wire Medium hardness Copper wire

595T 12 11 6.5 19 0.4 0.6 0.8 1.5
Semi-flush .472 .433 .256 .748 .015 .023 .031 .059
595TF 12 11 6.5 19 0.4 0.6 0.8 1.5
Flush .472 .433 .256 .748 .015 .023 .031 .059
2476TX1 11 11 6 19 0.3 0.4 0.5 1.0 Series 2400 MagicSense model
Flush .433 .433 .236 .748 .011 .015 .019 .039 (Length: 130 mm / 5.118 Inch)
576TX1 11 11 6.5 19 0.3 0.4 0.5 1.0
Flush .433 .433 .256 .748 .011 .015 .019 .039
