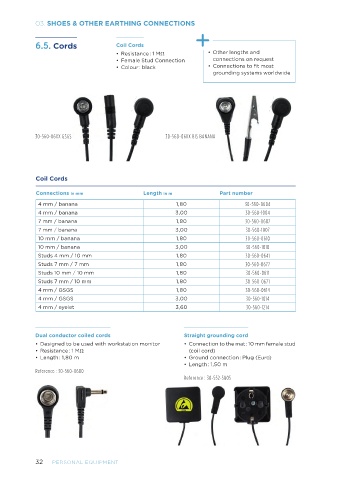

Page 32 - Eurostat PERSONAL EQUIPMENT katalógus

03. SHOES & OTHER EARTHING CONNECTIONS

6.5. Cords Coil Cords

• Resistance : 1 MΩ • Other lengths and
• Female Stud Connection connections on request
• Colour : black • Connections to fit most
grounding systems worldwide

30-560-06XX GSGS 30-560-06XX BIS BANANA

Coil Cords

Connections in mm Length in m Part number

4 mm / banana 1,80 30-560-0604
4 mm / banana 3,00 30-560-1004
7 mm / banana 1,80 30-560-0607
7 mm / banana 3,00 30-560-1007
10 mm / banana 1,80 30-560-0610
10 mm / banana 3,00 30-560-1010
Studs 4 mm / 10 mm 1,80 30-560-0641
Studs 7 mm / 7 mm 1,80 30-560-0677
Studs 10 mm / 10 mm 1,80 30-560-0611
Studs 7 mm / 10 mm 1,80 30-560-0671
4 mm / GSGS 1,80 30-560-0614
4 mm / GSGS 3,00 30-560-1014
4 mm / eyelet 3,60 30-560-1214

Dual conductor coiled cords Straight grounding cord
• Designed to be used with workstation monitor • Connection to the mat : 10 mm female stud
• Resistance : 1 MΩ (coil cord)
• Length : 1,80 m • Ground connection : Plug (Euro)
• Length : 1,50 m
Reference : 30-560-0600
Reference : 30-552-5005
