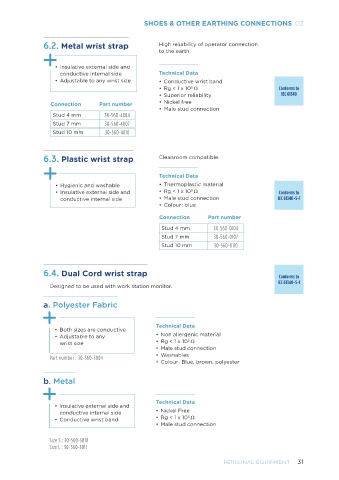

Page 31 - Eurostat PERSONAL EQUIPMENT katalógus

SHOES & OTHER EARTHING CONNECTIONS .03

6.2. Metal wrist strap High reliability of operator connection
to the earth.

• Insulative external side and
conductive internal side Technical Data
• Adjustable to any wrist size • Conductive wrist band
• Rg < 1 x 10 Ω Conforms to
5
• Superior reliability IEC 61340
Connection Part number • Nickel free
• Male stud connection
Stud 4 mm 30-560-4004
Stud 7 mm 30-560-4007
Stud 10 mm 30-560-4010

6.3. Plastic wrist strap Cleanroom compatible.

Technical Data

• Hygienic and washable • Thermoplastic material
5
• Insulative external side and • Rg < 1 x 10 Ω Conforms to
conductive internal side • Male stud connection IEC 61340-5-1
• Colour : blue
Connection Part number

Stud 4 mm 30-560-0104
Stud 7 mm 30-560-0107
Stud 10 mm 30-560-0110

6.4. Dual Cord wrist strap Conforms to

IEC 61340-5-1
Designed to be used with work station monitor.

a. Polyester Fabric

Technical Data
• Both sizes are conductive
• Adjustable to any • Non allergenic material
5
wrist size • Rg < 1 x 10 Ω
• Male stud connection
• Washables
Part number : 30-560-3004
• Colour : Blue, brown, polyester

b. Metal

Technical Data
• Insulative external side and
conductive internal side • Nickel Free
5
• Conductive wrist band • Rg < 1 x 10 Ω
• Male stud connection
Size S : 30-560-3010
Size L : 30-560-3011

PERSONAL EQUIPMENT 31
