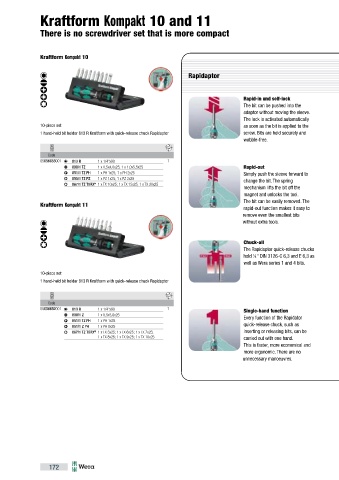

Page 176 - WERA katalógus

Kraftform Kompakt 10 and 11

There is no screwdriver set that is more compact

Kraftform Kompakt 10

Rapidaptor

Rapid-in und self-lock

The bit can be pushed into the
adaptor without moving the sleeve.
The lock is activated automatically
10-piece set as soon as the bit is applied to the
1 hand-held bit holder 813 R Kraftform with quick-release chuck Rapidaptor screw. Bits are held securely and
wobble-free.

Code
05056653001 813 R 1 x 1/4"x90 1
800/1 TZ 1 x 0,5x4,0x25; 1 x 1,0x5,5x25 Rapid-out
851/1 TZ PH 1 x PH 1x25; 1 x PH 2x25 Simply push the sleeve forward to
855/1 TZ PZ 1 x PZ 1x25; 1 x PZ 2x25 change the bit. The spring
867/1 TZ TORX 1 x TX 10x25; 1 x TX 15x25; 1 x TX 20x25
®
mechanism lifts the bit off the
magnet and unlocks the tool.
The bit can be easily removed. The
Kraftform Kompakt 11
rapid-out function makes it easy to
remove even the smallest bits
without extra tools.

Chuck-all
The Rapidaptor quick-release chucks
hold ¼" DIN 3126-C 6,3 and E 6,3 as
well as Wera series 1 and 4 bits.

10-piece set
1 hand-held bit holder 813 R Kraftform with quick-release chuck Rapidaptor

Code
05056652001 813 R 1 x 1/4"x90 1 Single-hand function
800/1 Z 1 x 0,5x3,0x25 Every function of the Rapidator
851/1 TZ PH 1 x PH 1x25
851/1 Z PH 1 x PH 0x25 quick-release chuck, such as
867/1 TZ TORX 1 x TX 5x25; 1 x TX 6x25; 1 x TX 7x25; inserting or releasing bits, can be
®
1 x TX 8x25; 1 x TX 9x25; 1 x TX 10x25 carried out with one hand.

This is faster, more economical and
more ergonomic. There are no
unnecessary manoeuvres.

172
