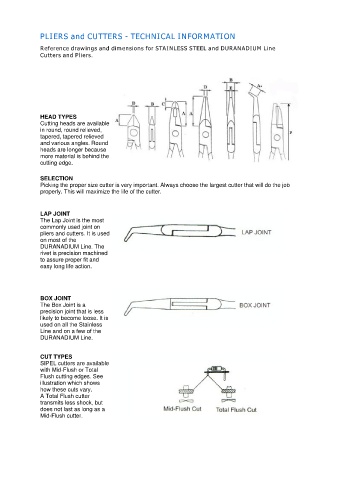

PLIERS and CUTTERS - TECHNICAL INFORMATION

Reference drawings and dimensions for STAINLESS STEEL and DURANADIUM Line
Cutters and Pliers.

HEAD TYPES
Cutting heads are available
in round, round relieved,
tapered, tapered relieved
and various angles. Round
heads are longer because
more material is behind the
cutting edge.

SELECTION
Picking the proper size cutter is very important. Always choose the largest cutter that will do the job
properly. This will maximize the life of the cutter.

LAP JOINT
The Lap Joint is the most
commonly used joint on
pliers and cutters. It is used
on most of the
DURANADIUM Line. The
rivet is precision machined
to assure proper fit and
easy long life action.

BOX JOINT
The Box Joint is a
precision joint that is less
likely to become loose. It is
used on all the Stainless
Line and on a few of the
DURANADIUM Line.

CUT TYPES
SIPEL cutters are available
with Mid-Flush or Total
Flush cutting edges. See
illustration which shows
how these cuts vary.
A Total Flush cutter
transmits less shock, but
does not last as long as a
Mid-Flush cutter.
