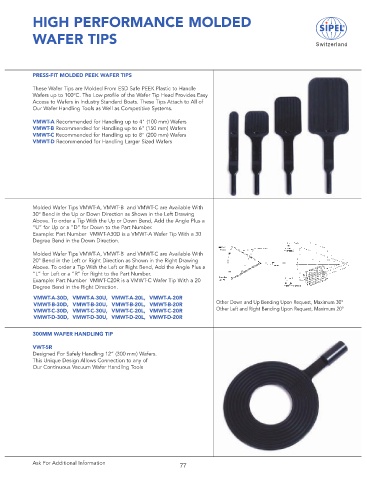

HIGH PERFORMANCE MOLDED

WAFER TIPS Switzerland

PRESS-FIT MOLDED PEEK WAFER TIPS
These Wafer Tips are Molded From ESD Safe PEEK Plastic to Handle
Wafers up to 100°C. The Low profile of the Wafer Tip Head Provides Easy
Access to Wafers in Industry Standard Boats. These Tips Attach to All of
Our Wafer Handling Tools as Well as Competitive Systems.

VMWT-A Recommended for Handling up to 4" (100 mm) Wafers
VMWT-B Recommended for Handling up to 6" (150 mm) Wafers
VMWT-C Recommended for Handling up to 8" (200 mm) Wafers
VMWT-D Recommended for Handling Larger Sized Wafers

Molded Wafer Tips VMWT-A, VMWT-B and VMWT-C are Available With
30° Bend in the Up or Down Direction as Shown in the Left Drawing
Above. To order a Tip With the Up or Down Bend, Add the Angle Plus a
“U” for Up or a “D” for Down to the Part Number.
Example: Part Number VMWT-A30D is a VMWT-A Wafer Tip With a 30
Degree Bend in the Down Direction.

Molded Wafer Tips VMWT-A, VMWT-B and VMWT-C are Available With
20° Bend in the Left or Right Direction as Shown in the Right Drawing
Above. To order a Tip With the Left or Right Bend, Add the Angle Plus a
“L” for Left or a “R” for Right to the Part Number.
Example: Part Number VMWT-C20R is a VMWT-C Wafer Tip With a 20
Degree Bend in the Right Direction.

VMWT-A-30D, VMWT-A-30U, VMWT-A-20L, VMWT-A-20R
Other Down and Up Bending Upon Request, Maximum 30°
VMWT-B-30D, VMWT-B-30U, VMWT-B-20L, VMWT-B-20R
VMWT-C-30D, VMWT-C-30U, VMWT-C-20L, VMWT-C-20R Other Left and Right Bending Upon Request, Maximum 20°
VMWT-D-30D, VMWT-D-30U, VMWT-D-20L, VMWT-D-20R

300MM WAFER HANDLING TIP

VWT-5R
Designed For Safely Handling 12” (300 mm) Wafers.
This Unique Design Allows Connection to any of
Our Continuous Vacuum Wafer Handling Tools

Ask For Additional Information
