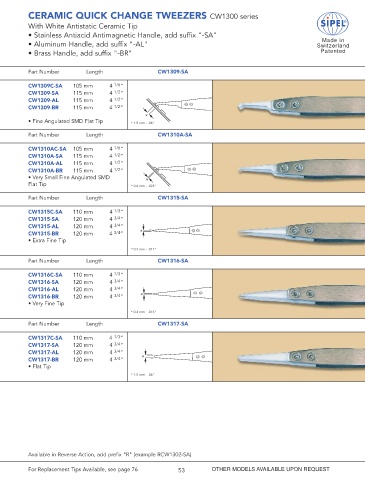

CERAMIC QUICK CHANGE TWEEZERS CW1300 series
With White Antistatic Ceramic Tip
• Stainless Antiacid Antimagnetic Handle, add suffix "-SA"
Made in
• Aluminum Handle, add suffix "-AL" Switzerland
• Brass Handle, add suffix "-BR" Patented

Part Number Length CW1309-SA

CW1309C-SA 105 mm 4 1/6 ”
CW1309-SA 115 mm 4 1/2 ”
CW1309-AL 115 mm 4 1/2 ”
CW1309-BR 115 mm 4 1/2 ”

• Fine Angulated SMD Flat Tip * 1.5 mm - .06"

Part Number Length CW1310A-SA
CW1310AC-SA 105 mm 4 1/6 ”
CW1310A-SA 115 mm 4 1/2 ”
CW1310A-AL 115 mm 4 1/2 ”
CW1310A-BR 115 mm 4 1/2 ”
• Very Small Fine Angulated SMD
Flat Tip * 0.6 mm - .023"

Part Number Length CW1315-SA

CW1315C-SA 110 mm 4 1/3 ”
CW1315-SA 120 mm 4 3/4 ”
CW1315-AL 120 mm 4 3/4 ”
CW1315-BR 120 mm 4 3/4 ”
• Extra Fine Tip
* 0.3 mm - .011"
Part Number Length CW1316-SA

CW1316C-SA 110 mm 4 1/3 ”
CW1316-SA 120 mm 4 3/4 ”
CW1316-AL 120 mm 4 3/4 ”
CW1316-BR 120 mm 4 3/4 ”
• Very Fine Tip
* 0.4 mm - .015"
Part Number Length CW1317-SA

CW1317C-SA 110 mm 4 1/3 ”
CW1317-SA 120 mm 4 3/4 ”
CW1317-AL 120 mm 4 3/4 ”
CW1317-BR 120 mm 4 3/4 ”
• Flat Tip
* 1.5 mm - .06"

Available in Reverse Action, add prefix "R" (example RCW1302-SA)

For Replacement Tips Available, see page 76 53 OTHER MODELS AVAILABLE UPON REQUEST
