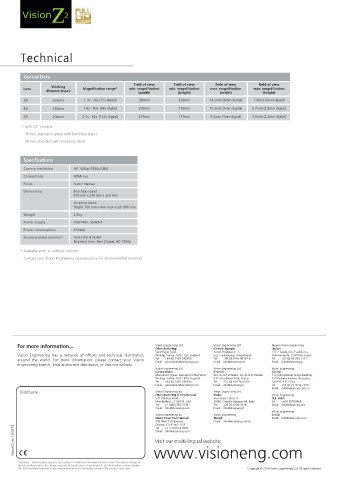

Technical


         Optical Data
                                                Field of view   Field of view   Field of view   Field of view
                   Working
         Lens                 Magnification range*  min. magnification  min. magnification  max. magnification  max. magnification
                 distance (max.)
                                                  (width)      (height)       (width)        (height)
         3D         333mm     1.3x - 36x (71x digital)  390mm   226mm      14.2mm (8mm digital)  7.9mm (4mm digital)
         4D         250mm     1.8x - 50x  (98x digital)  295mm  172mm      10.3mm (5mm digital)  5.7mm (2.8mm digital)
         5D         200mm     2.3x - 62x  (122x digital)  234mm  137mm     8.2mm (4mm digital)  4.6mm (2.2mm digital)
         * with 24” monitor.
          4D lens standard option with Benchtop stand.
          5D lens standard with Struktura stand.
         .
         Specifications
         Camera resolution  HD 1080p (1920x1080)
         Connections       HDMI out
         Focus             Auto / manual
         Dimensions        Benchtop stand:
                           410 mm x 240 mm x 350 mm
                           Struktura stand:
                           Height 700 mm x Arm max reach 800 mm
         Weight            2.5kg
         Power supply      100/240V, 50/60Hz
         Power consumption  8 Watts
         Recommended monitor*  16:9 | DVI & HDMI
                           Response time: 5ms | Signal: HD 1080p
        * Available with, or without monitor
         Contact your Vision Engineering representative for recommended monitors.
